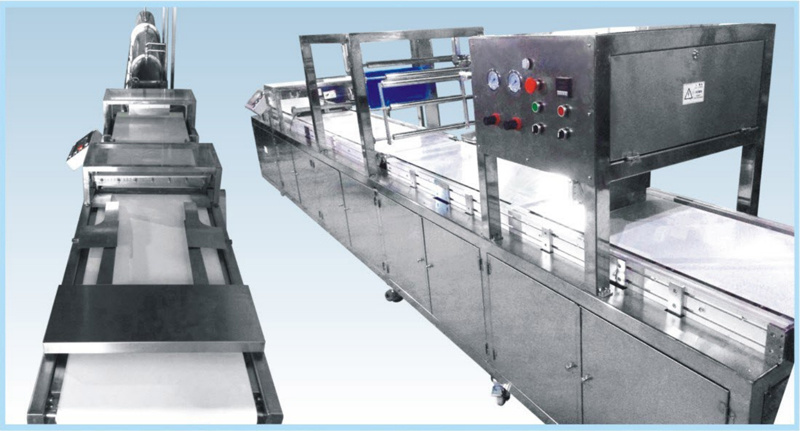

PuffPastry automatic packaging line
Product Detail
Brief Introduction:
Our system is perfect for making 1 ~2 kg sheet puff pastry margarine. The puffpastry automatic packaging line consists of automatic hot wire cutting, film covering and folding, film transportation and automatic stacking. There is optional weigh check system available. The complete line is custom designed, developed and fabricated in-house to meet our specific customer need. The conveyor belt is made of imported food grade material and driven by advanced digital servo motor and Siemens PLC for precise movement and control. The frame is made of SS304 or 316L for easy cleaning and long lasting. The automated system saves labor and ensures food safety production without secondary contamination.
The functions and features are as below:
1. Adiustable temperature control for the hot wire knife for clean and easy cutting
2. Special design on the knife movement to ensure a perfect vertical cut edge.
3. Svnchronous fixed lenath cutting, to ensure the weight consistency of each piece.
4. Alcohol spray onto the conveyor belt for cleanliness and ease of separation.
5. Adjustable cutting length simply by entering value into touch screen HMl. Each conveyor
sectionis individually speed regulated for flexibility.
6.Production data will be automatically recorded:
7.Equipped with failure alarm device;
8.Every mechanical moving part is covered for safety protection.
Parameter:
| Peritoneal type | Cutting thickness (mm) | Slice length (mm) | Cuttinq speed (Pcs/min) | Vertical deviation (degree) | Material length deviation (mm) | Package length deviation (mm) | Measurement detection | Automatic stack (Pcs/box) | Exterior size (mm) |
| lop & bottom peritoneum | 8~30 | 100-350 | 30 | ±2 | ±1 | ±1 | Dynamic selection | 10/15 | 5800 x 820 x 1500 |
| Left&right peritoneum | 8~30 | 100~350 | 16 | ±2 | ±1 | ±1 | Dynamic selection | 10/15 | 5800x820x1500 |

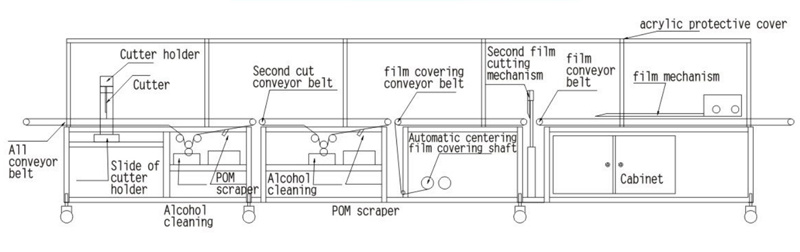

Structure Chart:
Patent:
